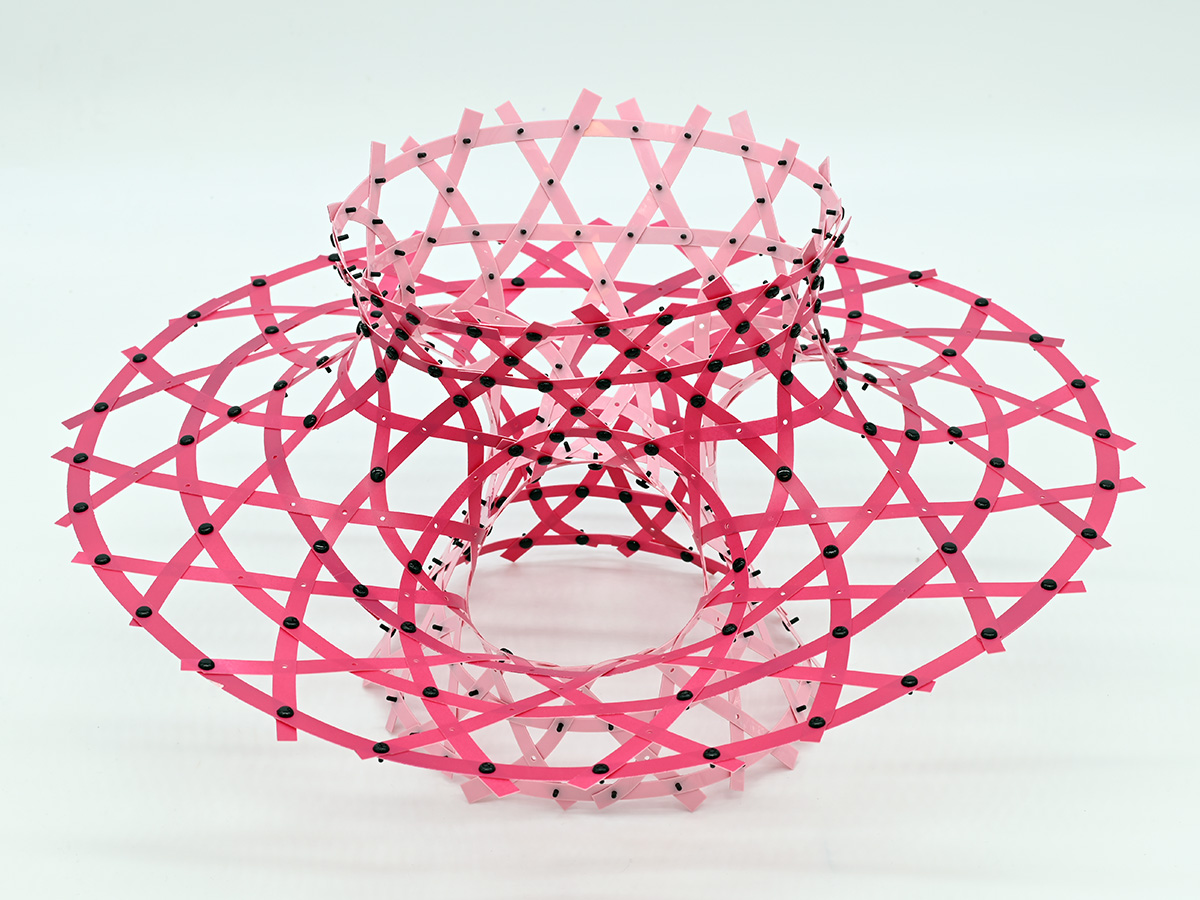

A woven dome made of interlaced curved ribbons

Weaving curved surfaces from flat ribbons

2019–2023

Basket weaving has always forced curvature in by inserting defects, leaving surfaces faceted. We show instead that giving each flat ribbon a prescribed in-plane curvature tunes a weave's Gaussian curvature continuously, a largely geometric effect rooted in the Gauss-Bonnet theorem. A computational inverse-design pipeline then solves, for any target surface, the flat ribbon shapes that relax into it once woven and laser-cut, and we characterized the resulting domes, which stiffen, snap through, and can be tuned from monostable to bistable. The work turns an empirical craft into a predictive framework for smooth, self-supporting curved shells.

References

  1. Baek C, Martin AG, Poincloux S, Chen T, Reis PM. Smooth triaxial weaving with naturally curved ribbons. Physical Review Letters 127(10), 104301 (2021).
  2. Ren Y, Panetta J, Chen T, Isvoranu F, Poincloux S, Brandt C, Martin A, Pauly M. 3D weaving with curved ribbons. ACM Transactions on Graphics 40(4), 127 (2021). SIGGRAPH.
  3. Poincloux S, Vallat C, Chen T, Sano TG, Reis PM. Indentation and stability of woven domes. Extreme Mechanics Letters 59, 101968 (2023).
